Contactors

32 Amp. AC-1, 18 Amp AC-3
 Normally Open (N.O.) contacts
600V
 32 A. Incandescent, LED  or resistive load
 20 A. Ballast, 7.5HP @480V
Auxiliary contact  1NO/1NC


  Details*        Specifications

931810 120VAC  $32.99



50 Amp. AC-1, 32 Amp. AC-3

Normally Open (N.O.) contacts 600V

50 A. Incandescent, LED  or resistive load
 32 A. Motor control, 20HP@ 480VAC
Auxiliary contact  1NO/1NC


Details*     Specifications

  933210 120VAC  $39.99


934022


60 Amp.  2x2 Pole
    2NO - 2 NC


2 Normally Open  (N.O.) contacts
  2 Normally Close (N.C.) contacts


 Rated: AC-1 60Amp,  AC-3  32Amp

7.5HP @240V,  7 KW@ 220VAC
 Coil Inrush 16VA, Sealed 6VA

    Specifications

934022 120VAC   $149.99





40A.  4 Pole N/C
Specifications

 Normally closed (N.C.) contacts
For 120/220/277/Rated 400V, 934004
40 A. Incandescent or resistive load AC1
32 A. Ballast and General purpose  AC3
Power indicator, DIN mount
Dim: 2.2 x 3.5 x 2.5 in (55 x 90 x 70 mm)

  934004  120VAC  $79.99

  934024  24VAC   $129.99



  60 A.    4 Pole    934060
Normally Open (N.O.) contacts
7.5HP @240V, 10KW 277VAC
40 A. Ballast, 7 KW@ 220VAC
63 A AC-1, 40 A. AC-3
Power indicator, DIN mount

Dim: 2.2 x 3.5 x 2.5 in (55 x 90 x 70 mm)
120VAC coil

934060  120VAC  $79.99




60 A. 4 Pole
934006

Normally closed (N.C.) contacts
For 120/220/277/Rated 400V,
40A. Ballast, 7 KW@ 220VAC
63A  AC-1,  40 A. AC-3
40A, 24VDC, DC Switching
Power indicator, DIN mount

Dim: 2.2 x 3.5 x 2.5 in (55 x 90 x 70 mm)
120VAC coil

934006  120VAC  129.99



933020 Miniature Contactor
20A, 3 Pole, 120VAC Coil
2HP @240V, 7.5HP @460V
1HP @120V,
20Amp AC-1, 12Amp. AC-3
Screw Clamp Terminals, 600V, 1 N.O. Aux.,
AC Coil Current Inrush 32VA, Sealed 6VA
Dim: 1.7 x 2.5 x 2.3 in (45 x 64 x 58 mm)

933021   $49.99



933020 Miniature Contactor
20A, 3 Pole, 12VDC Coil
2HP @240V, 7.5HP @460V
1HP @120V,
20Amp AC-1, 12Amp. AC-3
Screw Clamp Terminals, 600V, 1 N.O. Aux.,
DC Coil Current Inrush/Sealed  250mA
Dim: 1.7 x 2.5 x 2.3 in (45 x 64 x 58 mm)

933020   $52.99

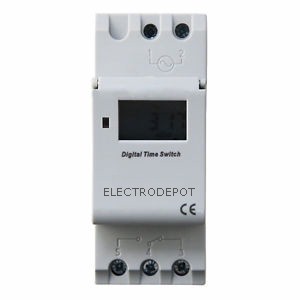

TIMERS
