  Silent Power & Lighting Contactor



Solid state contactor with heat sink on DIN rail

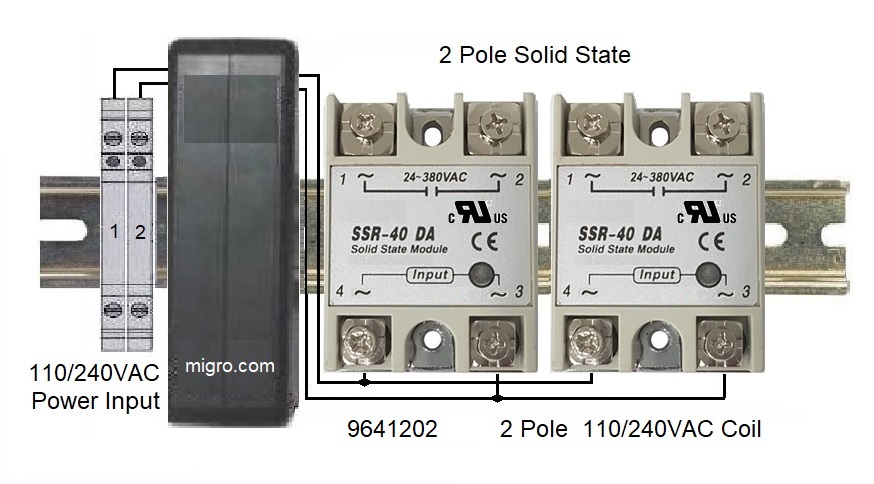

9641202   40Amp 2 Pole,  Coil 120/220VAC   $189.97


Solid state contactor with heat sink on DIN rail
9640242    40Amp 2 Pole,    Coil  24VAC      $199.97

Solid state contactor with heat sink on DIN rail

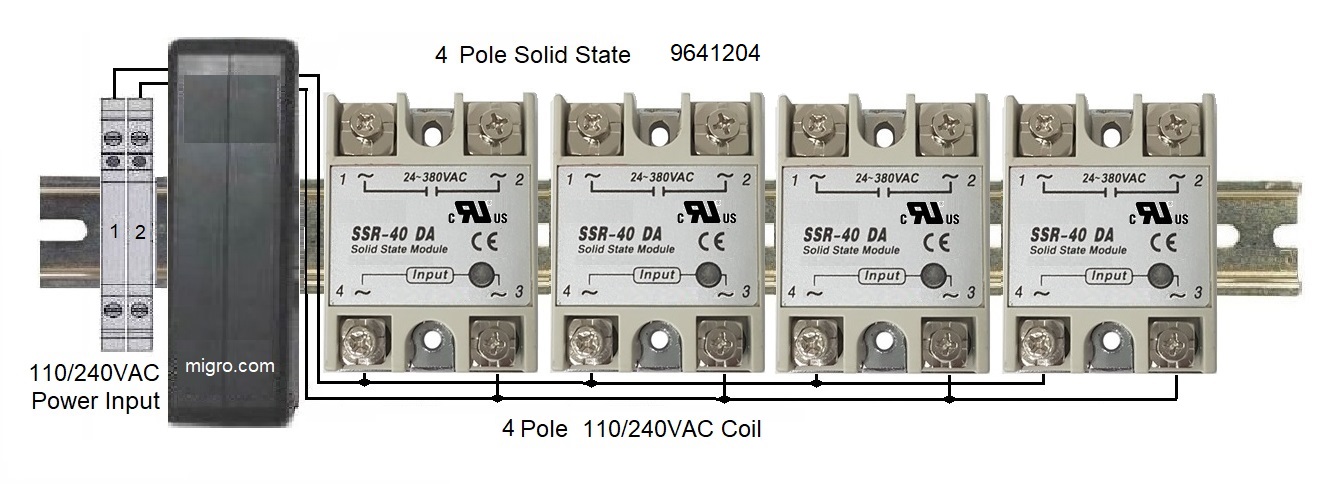

9641204   40Amp 4 Pole,  Coil 120/240VAC    $299.99

Solid state contactor with heat sink on DIN rail
9640244    40Amp 4 pole,    Coil 24VAC   $298.99


Special Order Solid State Contactor Set

Solid state contactor with heat sink on DIN rail

Energy saving very low power drain, no moving parts

Quiet operation,
No acoustical noise, No closure click, No vibration

Applications: Studios, Lighting, Heater,  Automation, Harsh environments

FEATURES
  • 40 A. Incandescent or resistive load
  • 32 A. Ballast and General purpose
  • 30 A. Inductive load
  • Power ON LED indicator
  • Normally open (N.O.) contacts
  • Solid Conductor:
     25 mm2  Max torque 0.6 Nm
  • Stranding Conductor:
     16 mm2,  Max torque 0.6 Nm
  • Max switching 1000 switch/hr
  • No humming, No noise, No sound
  • CE approved. IEC 60664-1
  • UL listed

  • Control: 24VAC  or  120-240VAC
  • Coil: 5VA inrush, 2VA sealed
  • Power: 120- 480VAC, 40A
  • Electric strength: 4 kV
  • IEC AC Rate:  AC-1;  16 kW,
          AC-3; 11 kW @400V
  • Operating Temperature
          -30…+70 °C (-22…+158 °F)
  • Size 2 Pole: 180 x 82 x 82 mm /
         7" x 3.1" x 3.1" (L*W*T);
  • Size 4 Pole: 250 x 82 x 82 mm /
         10" x 3.1" x 3.1" (L*W*T);
  • Screw Dia : 0.4cm / 0.157"
  • Weight: 2 Pole 382g, 4 Pole 567g

  • .Custom Specifications, Amps, Voltage, etc  available upon Request

    Lightning Control


    Single pole

    Single Pole

    3 pole
    3 Pole
